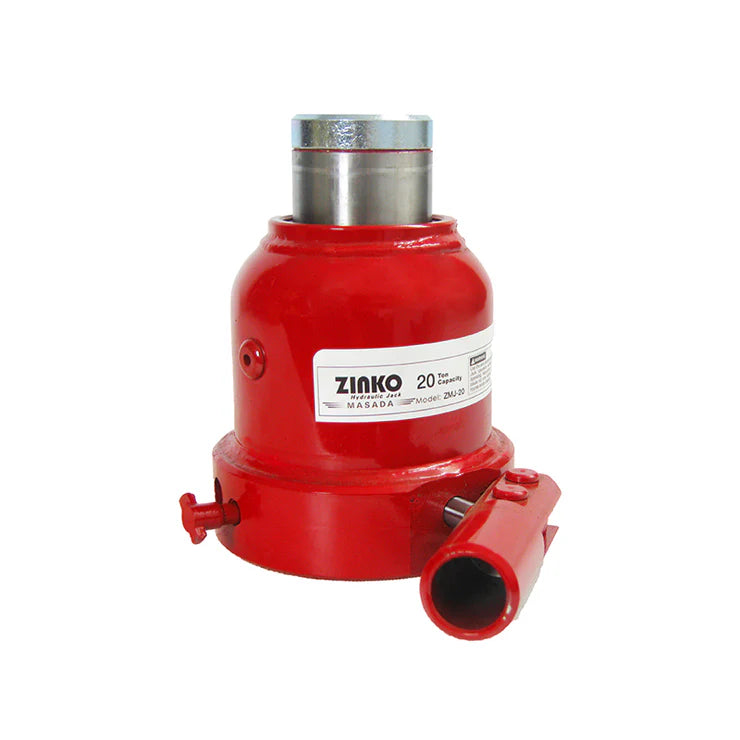

Zinko Mini Compact Hydraulic Bottle Jacks

This bottle jack is compact and powerful with a very low profile.  A forged steel base is a powerful heavy-duty jack that is ideal for use in the automotive, machinery, and construction industries. ZM models are great for general hydraulic jack use and are suitable to many different lifting and pushing applications.

• Small size is ideal for centering heavy equipment or making
  fine adjustments. Compact, and powerful with a very low profile.
• Welded steel construction throughout reduces metal fatigue allowing for a longer life
• Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
• ZM models are usable in multiple positions: upright, angled, or horizontal
• Special grade steel results in high durability and helps to prevent rust
• Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
• Can be used in conjunction with a mechanical gear puller to create a hydraulic puller with over 5 ton capacity.
• Can also be used as a spreader to apply force with just over 2-1/2" of clearance needed.
• Use in either an upright or horizontal position.
• Optional mini jack with pressure gauge available upon request.

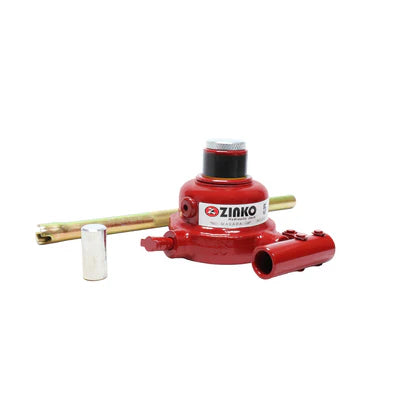

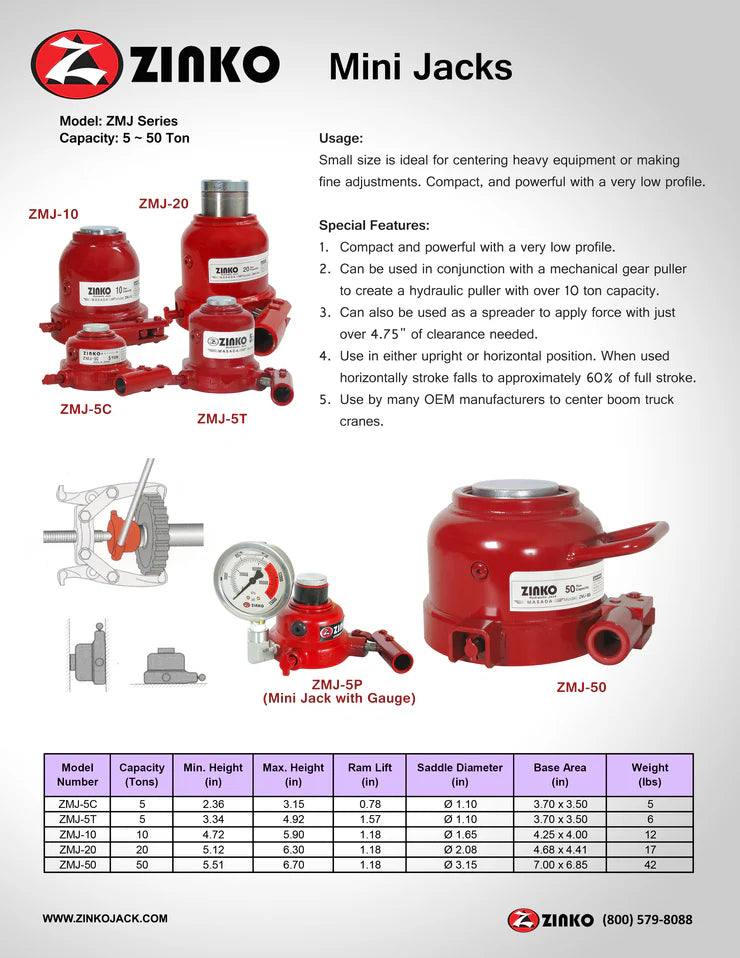

ZMJ-5C 5 Ton  Min Height  2.36" Max Height  3.15
ZMJ-5T 5 Ton   Min Height 3.34   Max Height  4.92
ZMJ-10 10 Ton Min Height 4.72   Max Height  5.90
ZMJ-20 20 Ton Min Height 5.12   Max Height  6.30
ZMJ-50 50 Ton Min Height 5.51   Max Height  6.70
